How to Create a DIY Painted Wall Arch

A DIY painted wall arch is very trendy and adds an affordable pop of interest to your home!

I worked with Dutch Boy® Paints to “Simplify the DIY” and complete this project in one day!

Disclaimer: This is a sponsored post it’s been so fun working with Dutch Boy Paints on this project. All opinions are 100% honest and my own. Thank you for your support!

Ready to see the step-by-step tutorial? Let’s go!

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

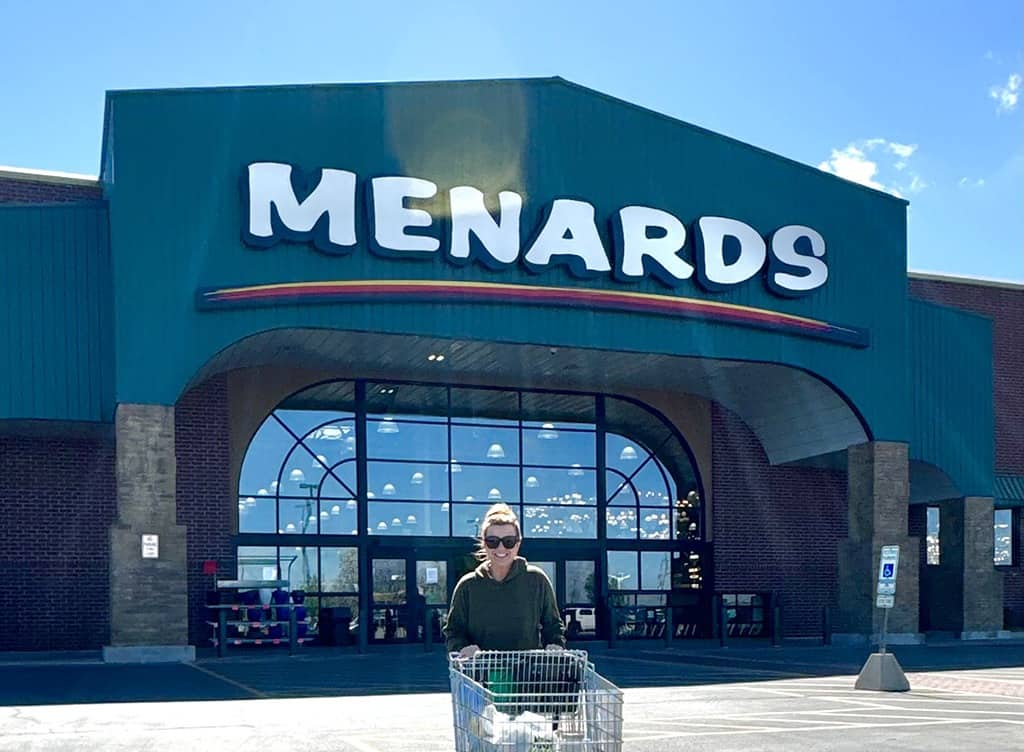

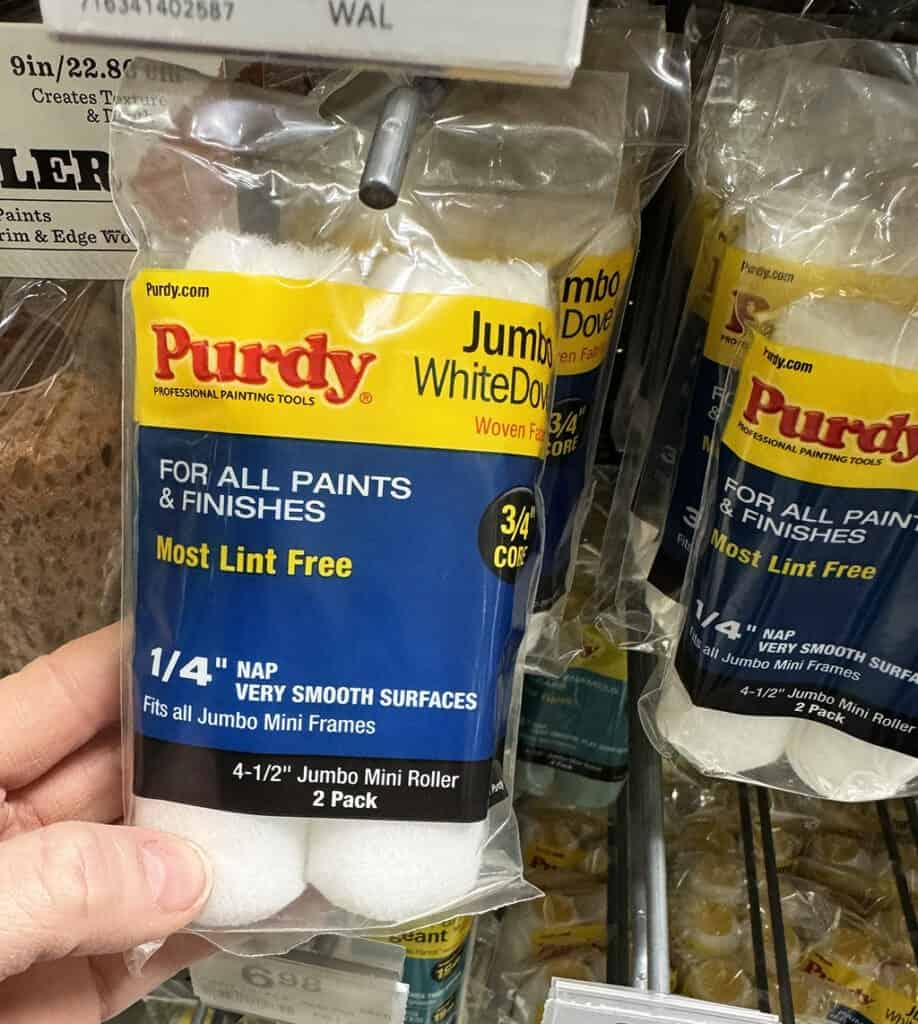

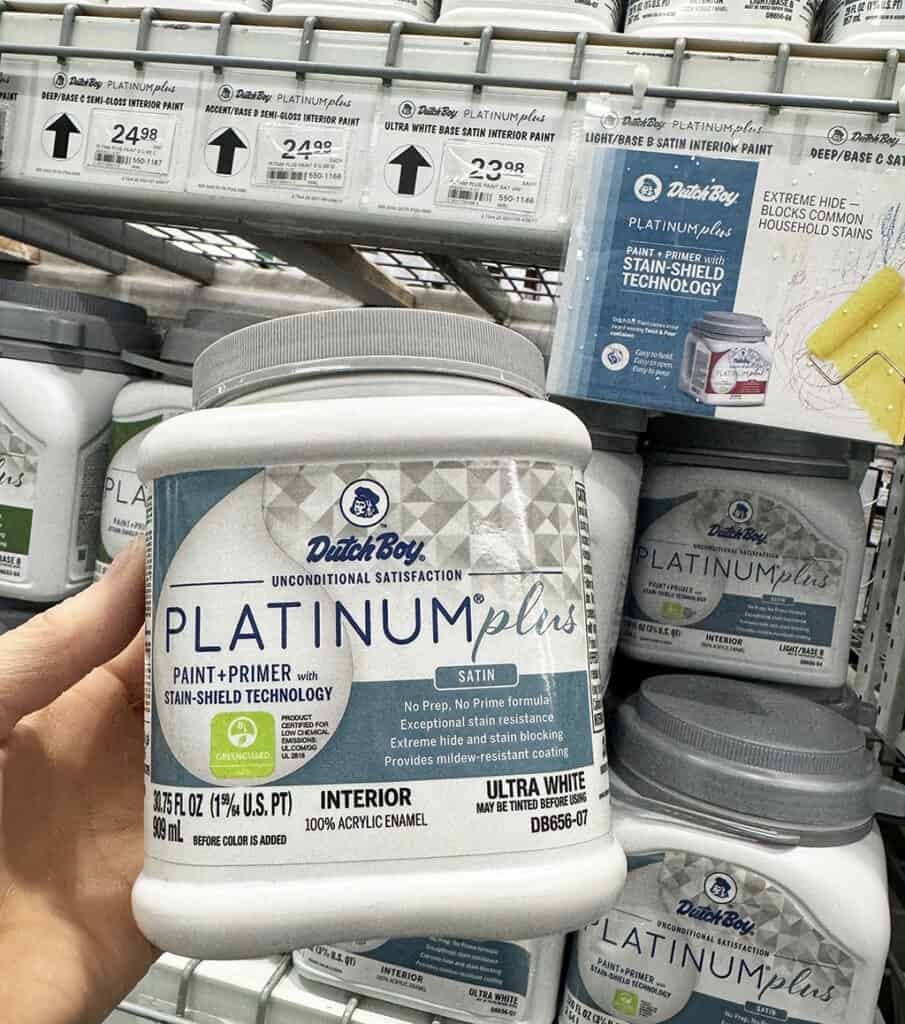

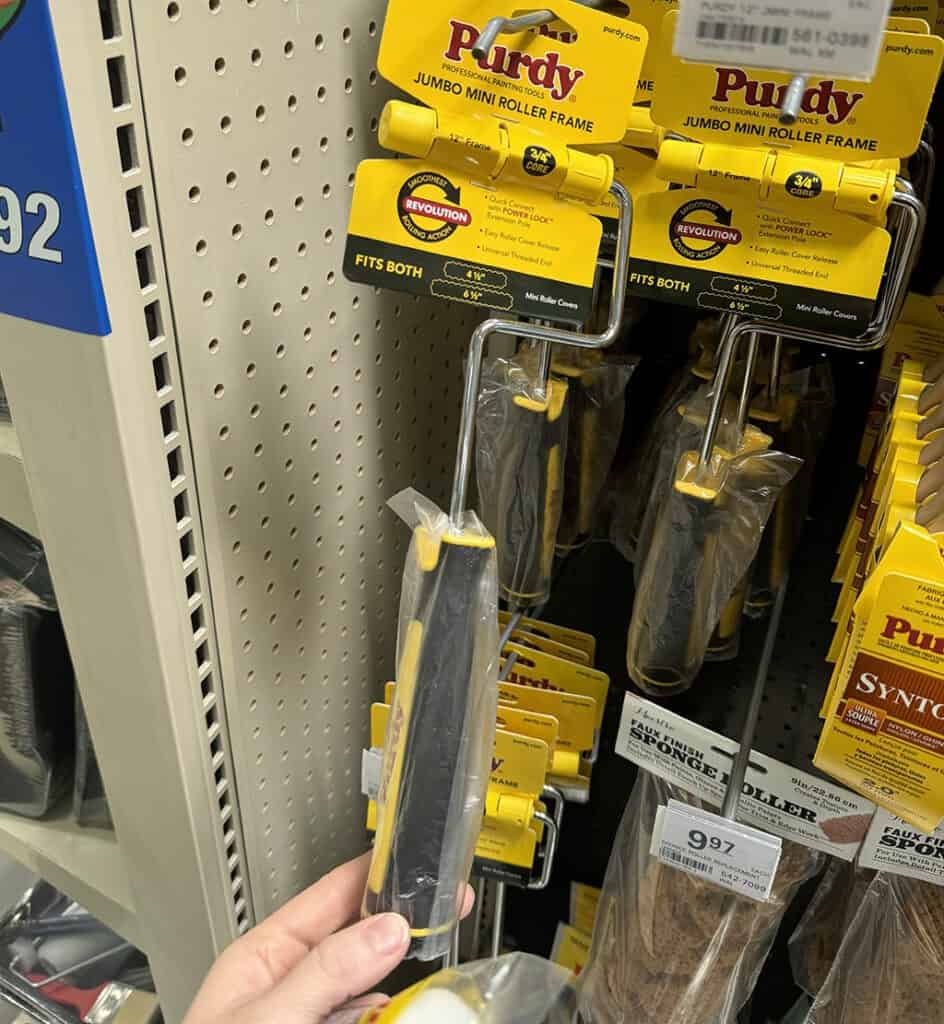

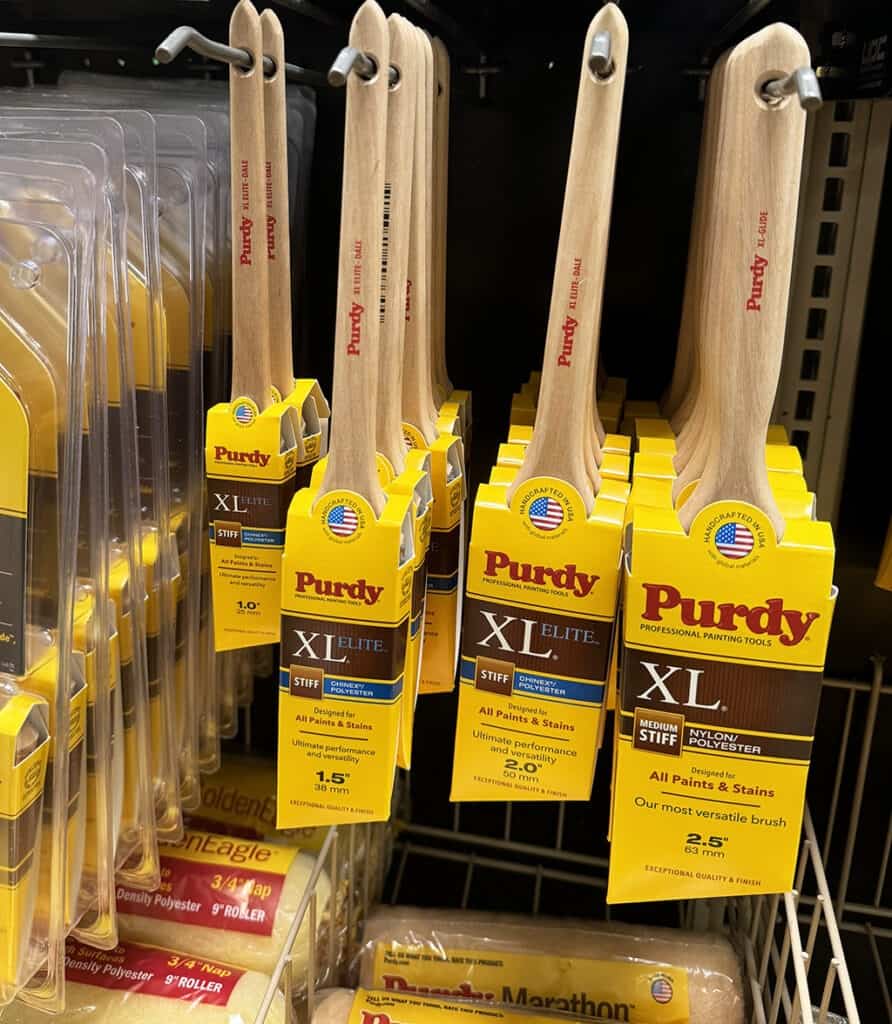

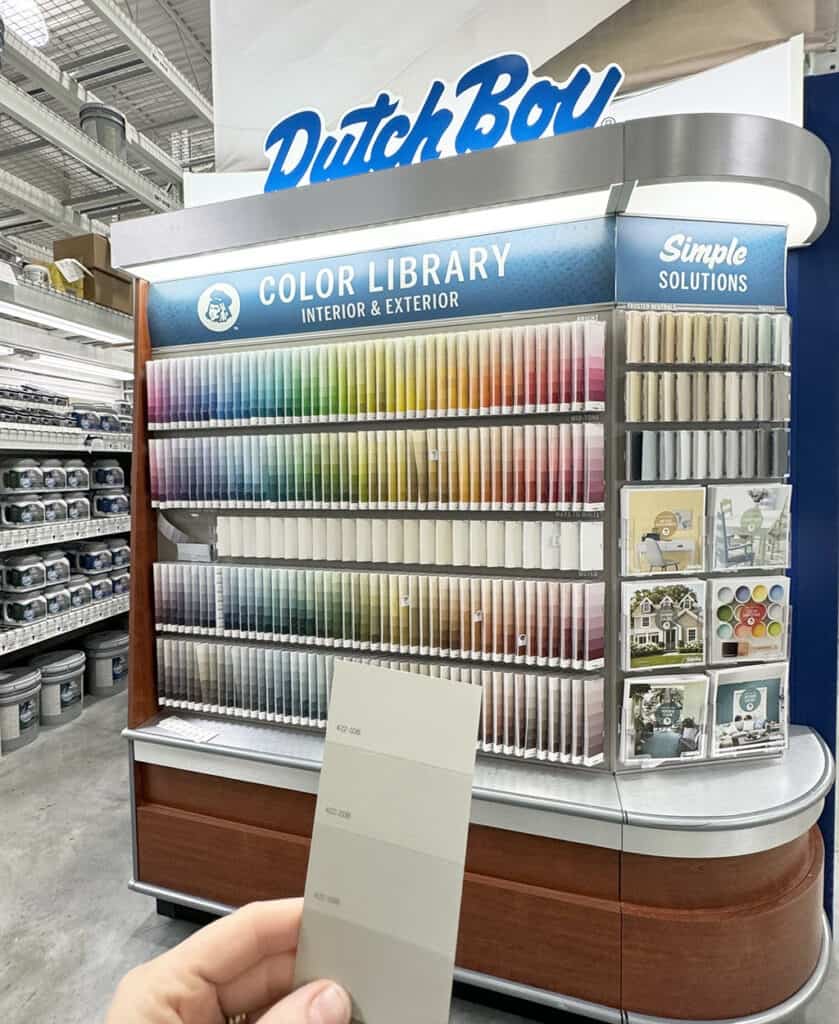

I headed to my local Menards Home Improvement Store to pick up some Dutch Boy® Platinum® Plus Paint and Primer, a Purdy brush, and Purdy roller.

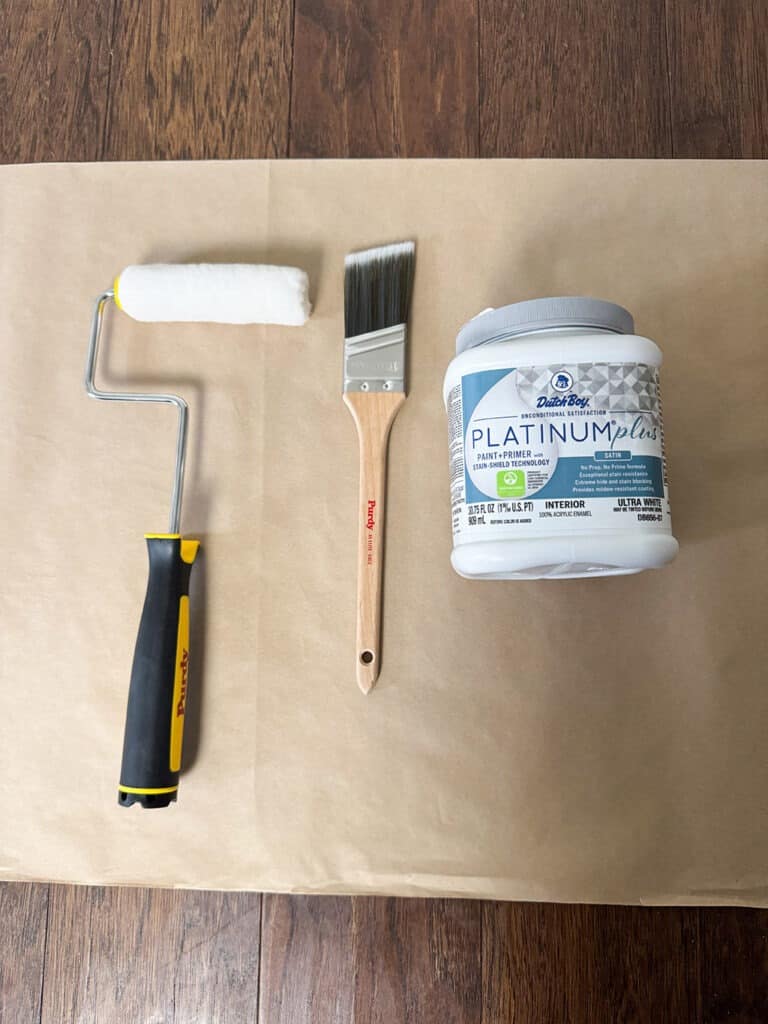

Gather your supplies:


Dutch Boy® Platinum® Plus Paint and Primer
I chose the color Canvased 015W (satin) to coordinate with our existing wall color, Existence 420-1DB (eggshell).

• Purdy paintbrush
• Purdy roller and frame
• Level
• Tape measure
• Pencil
• Painter’s tape
• Sanding block
• Wall repair kit
• Drop cloth
• String (or painter’s tape) and a thumbtack (for the arch top)

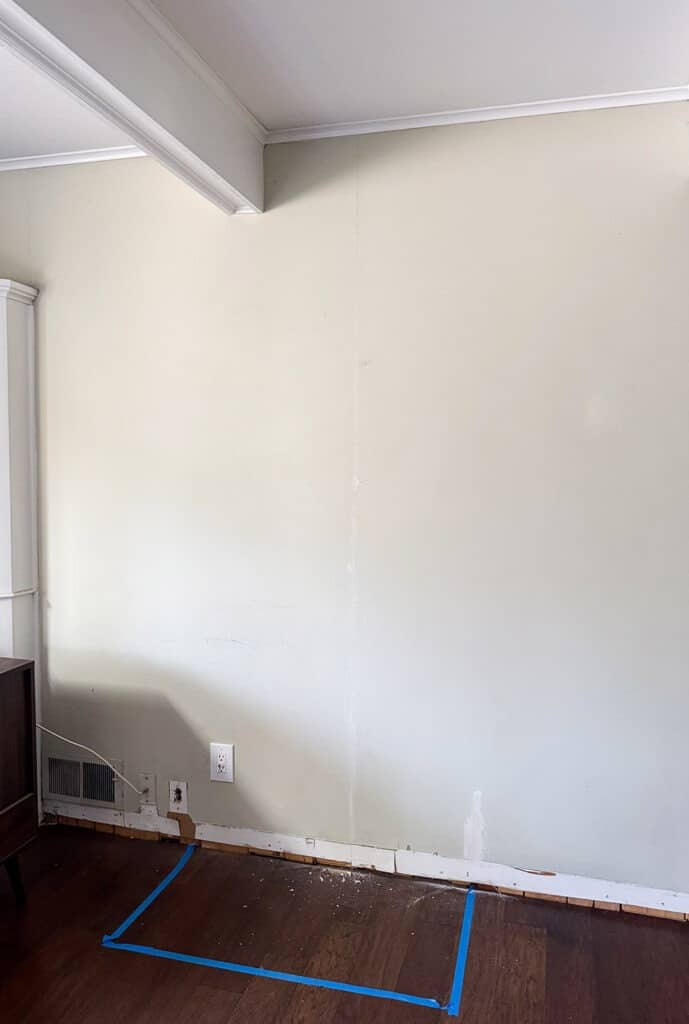

Here’s a look at the before photo – it was just fine before, but this corner was begging for a DIY painted wall arch!

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog
How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

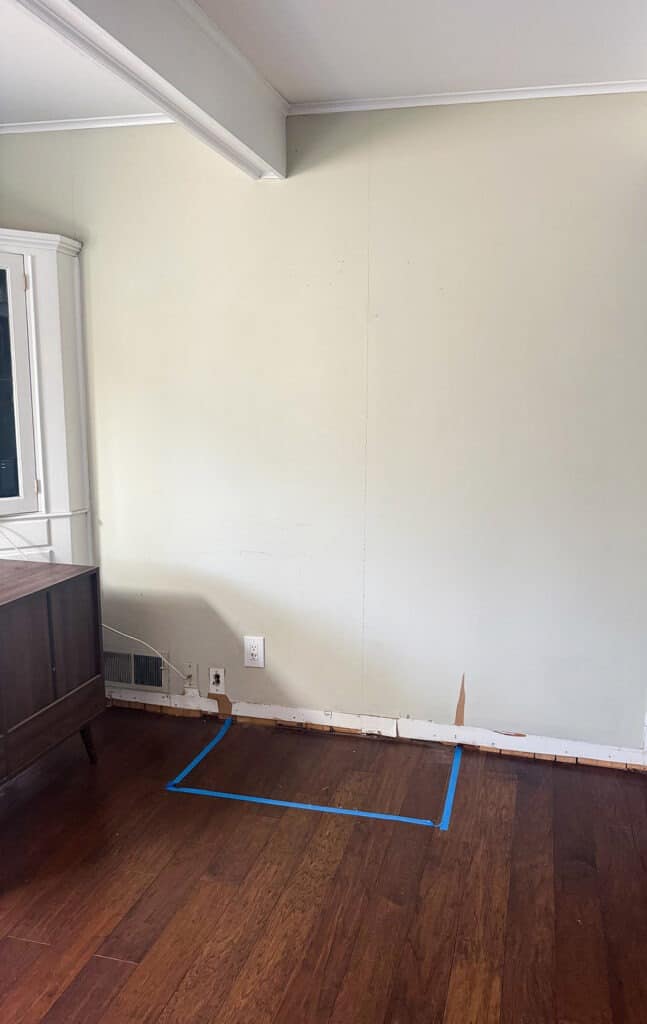

To start, I cleared all of the furniture out of the way and used my painter’s tape to mark where the record cabinet will go on the floor. My goal was to line up the arch and the cabinet.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

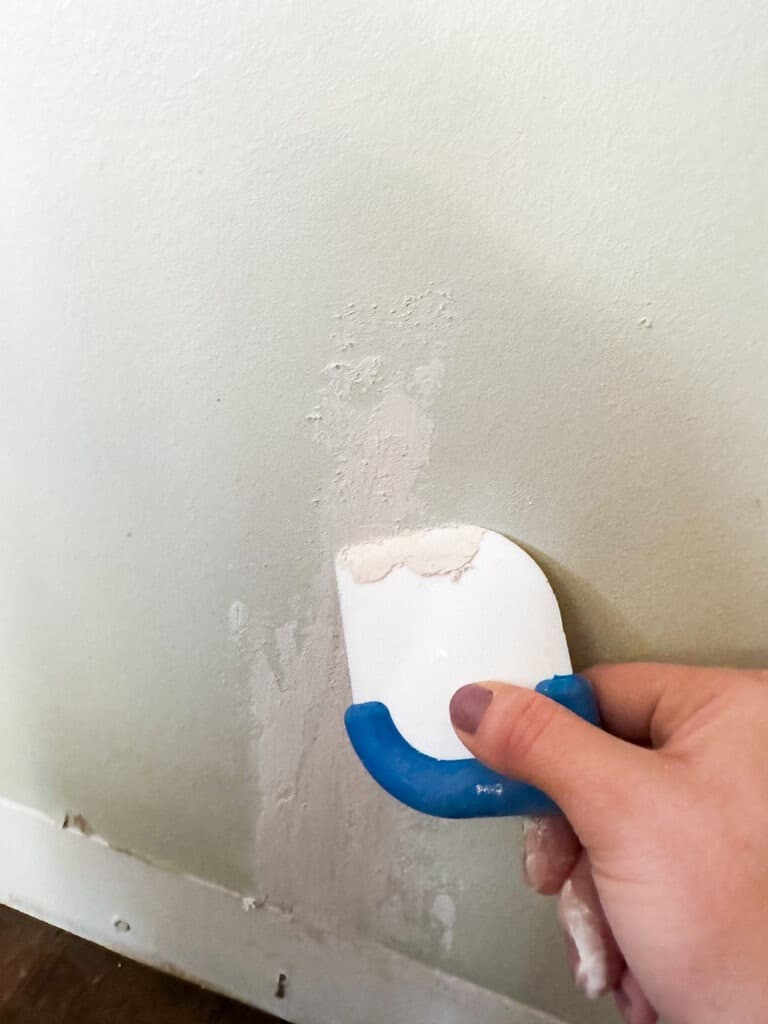

Then I began to repair the wall, filling nail holes and a larger damaged area. I smeared on the filler, then smoothed it out with a scraper tool.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog
How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

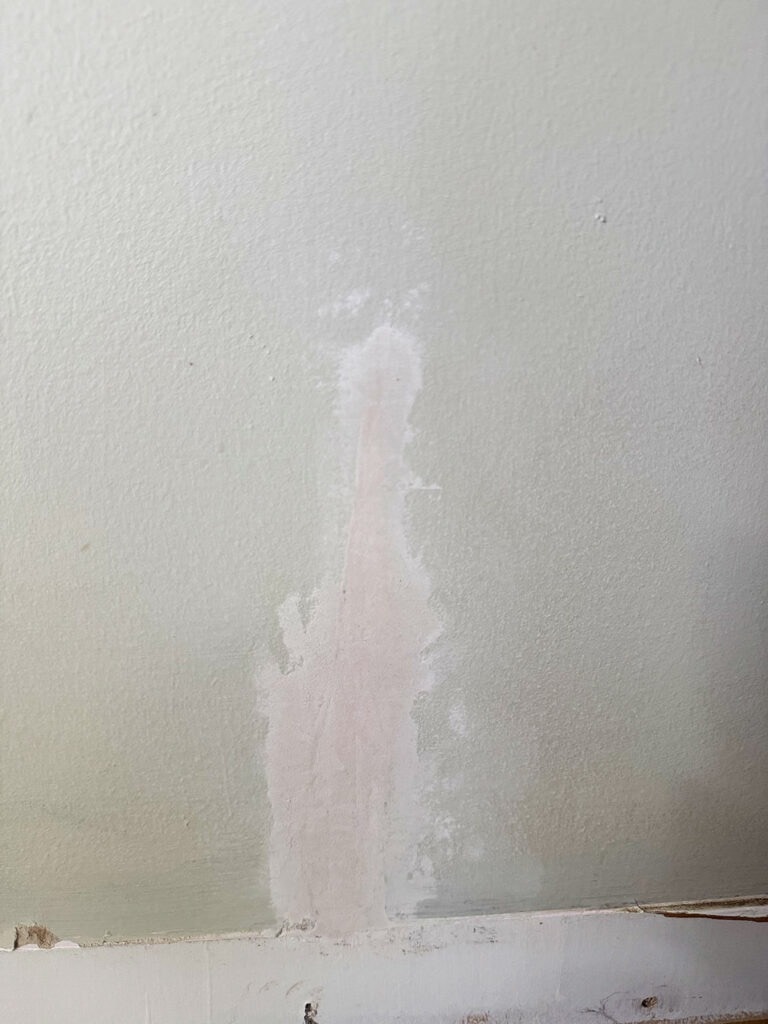

There was a large vertical sheetrock seam showing as well, so I filled that in the best I could. Once everything was dry I sanded all the repaired areas for a smooth finish.

Finally, I wiped the wall to remove any dust.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

It was time to measure and determine the sizing for the arch.

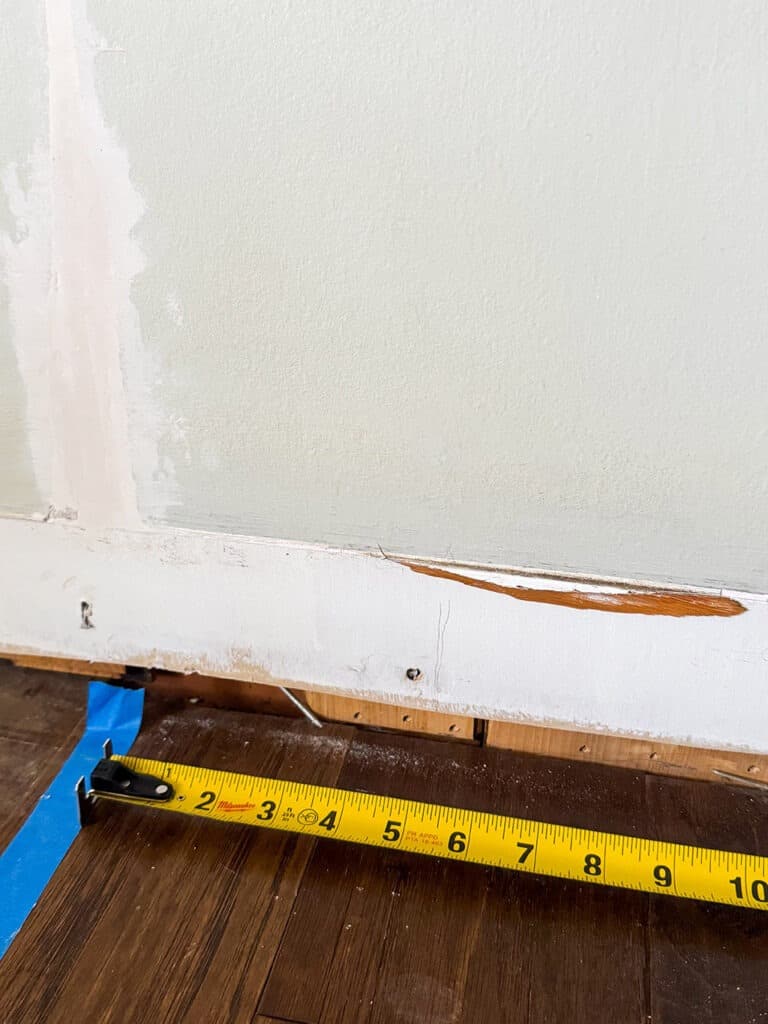

I took my tape measure and marked 5″ to the left and right side of the floor tape, marking it on the wall.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

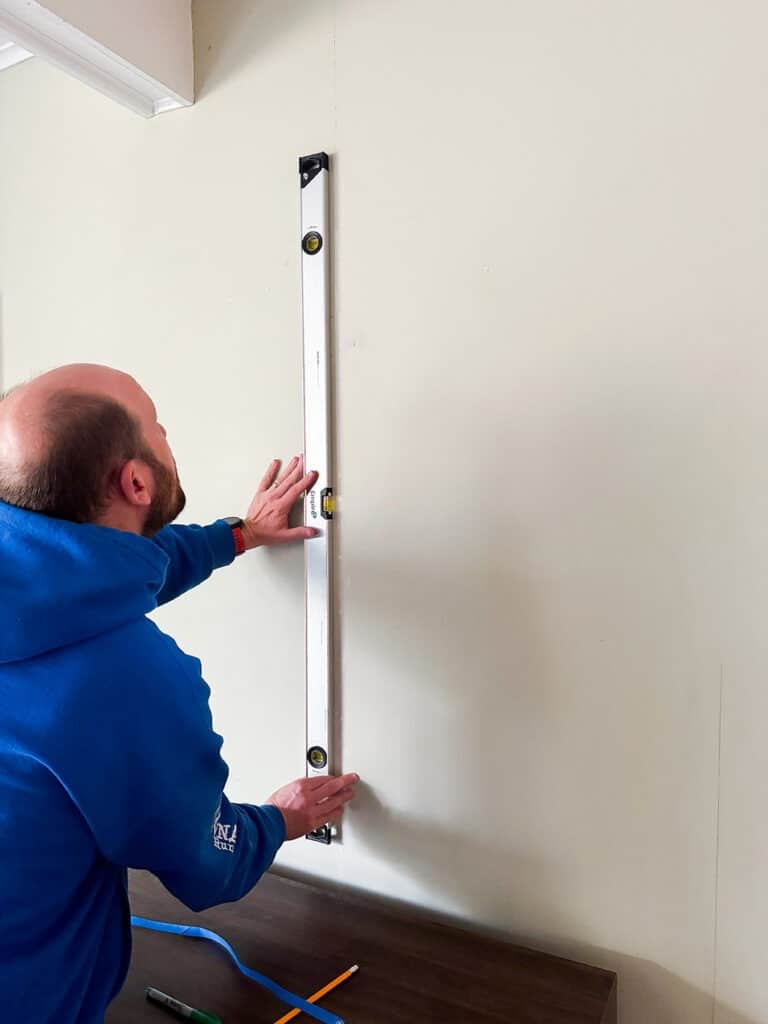

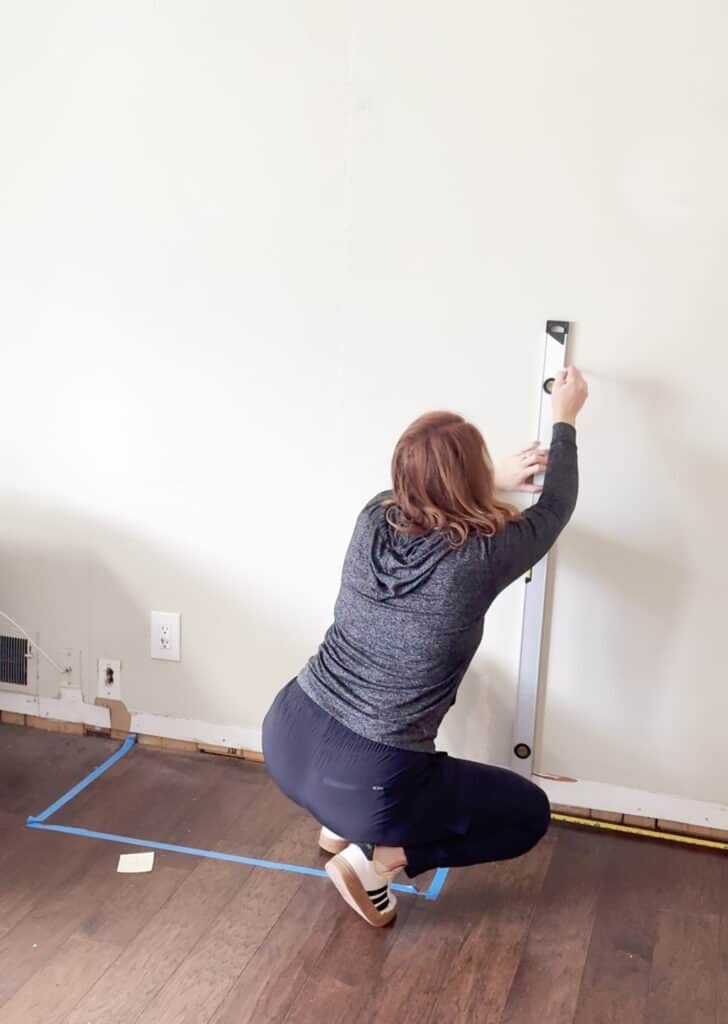

Using my level and a pencil, I drew a vertical line on both sides, which would be the left and right side of the arch.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

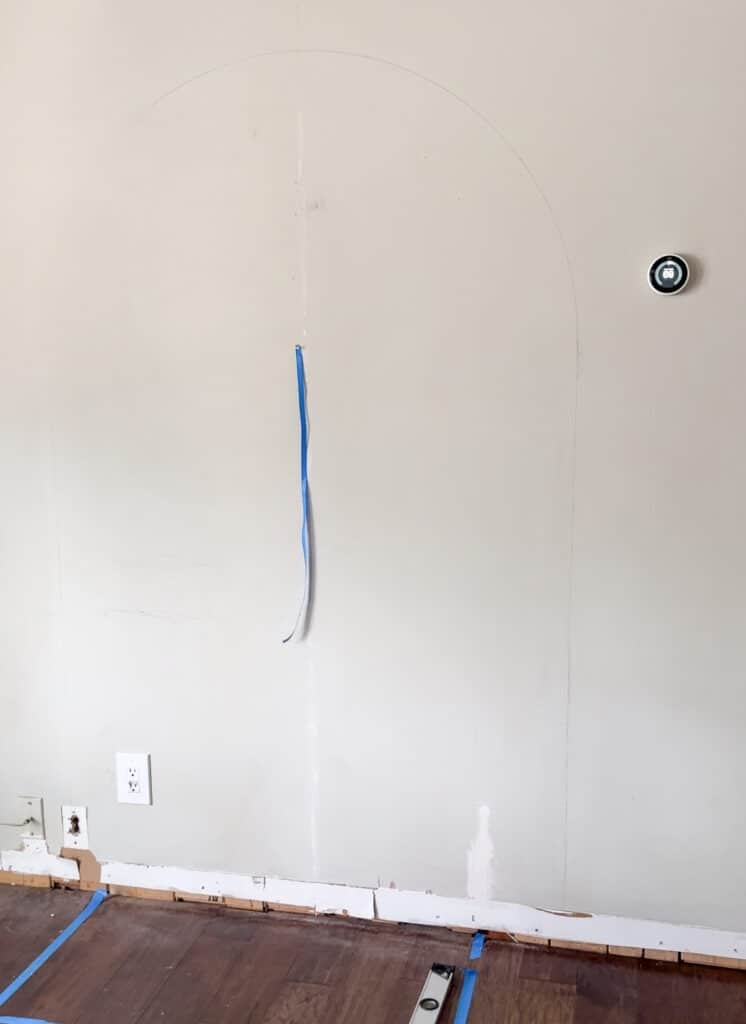

To draw the arch at the top I was planning on using a tack, string, and pencil, but my husband Ted had a better idea.

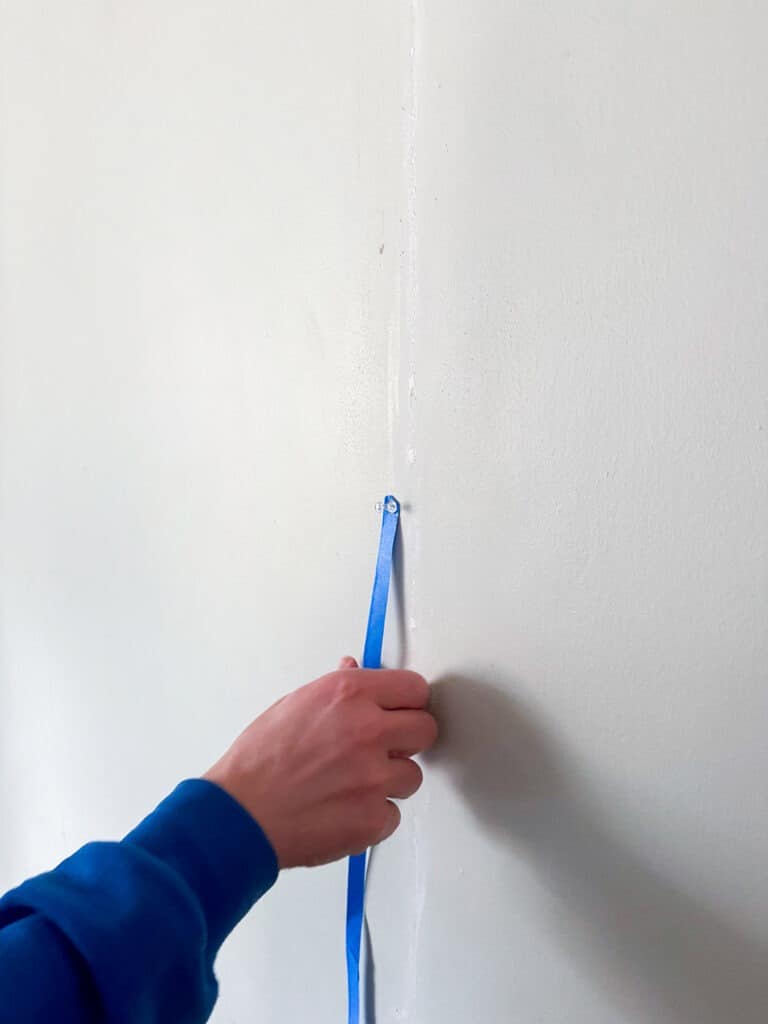

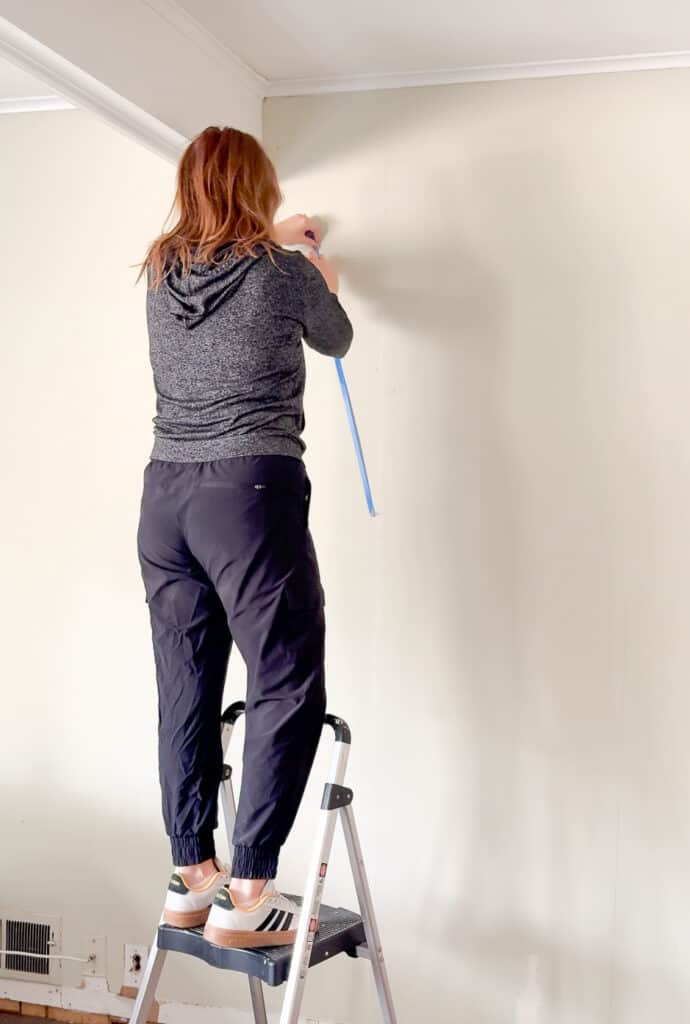

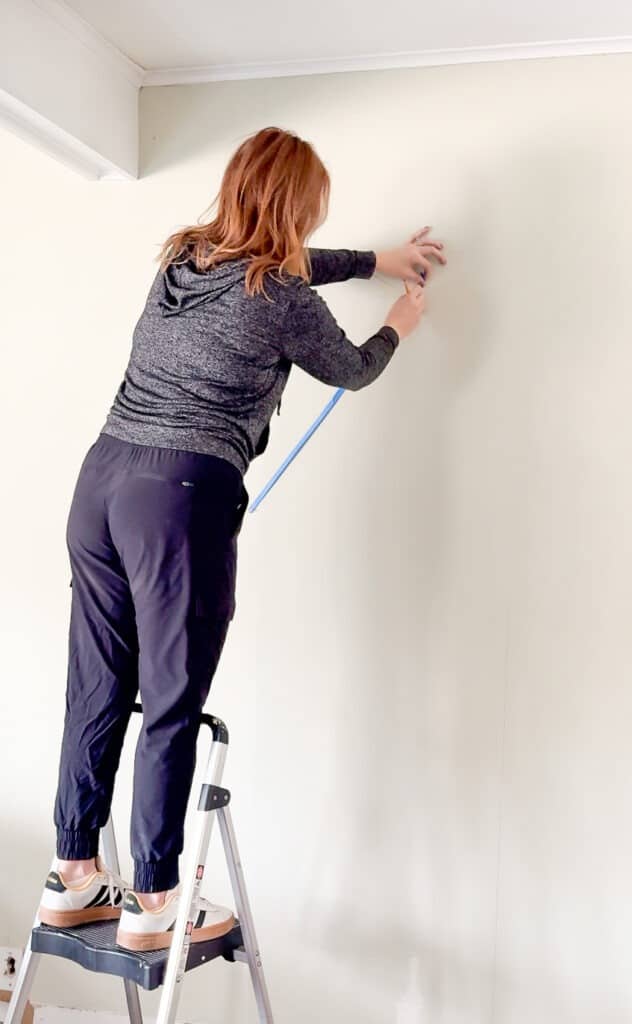

We folded a long piece of painter’s tape in half to make it extra strong. Then we measured the dead center of both lines and tacked the tape strip on the wall.

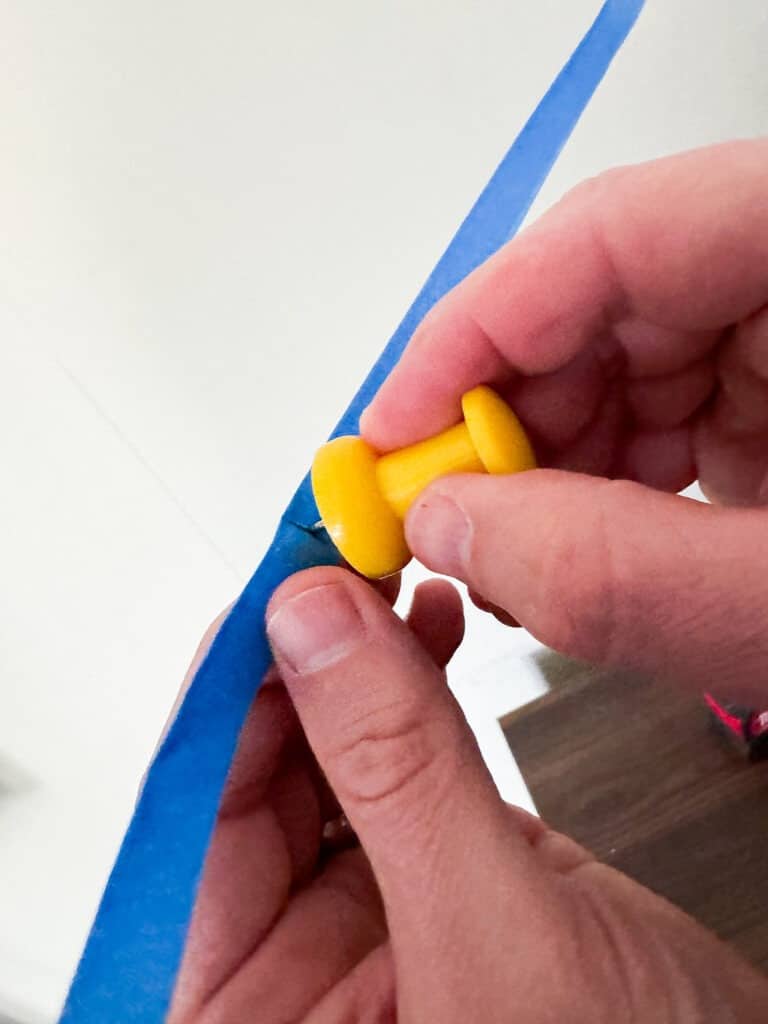

I pulled the tape to the left side first and noted where the tape met the already drawn vertical lines. I used another thumb tack to poke a hole in the tape strip for my pencil tip to poke through.

Then I very slowly and carefully let the tape guide my pencil from the center to the left vertical line.

I repeated the exact same step on the right side from the center until I had a perfect curve.

If your curve were to not line up with your vertical lines as perfectly as you’d want, it’s easy to simply erase your vertical pencil line and redraw it with a level.

Tip: I had a couple spots where I needed to erase some extra pencil marks and this worked well for me. An everyday cleaner and a rag also work well to remove pencil markings.

I stepped back to admire my work – this measuring and drawing step took about 20 minutes. It was worth it to ensure I had everything precisely measured.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

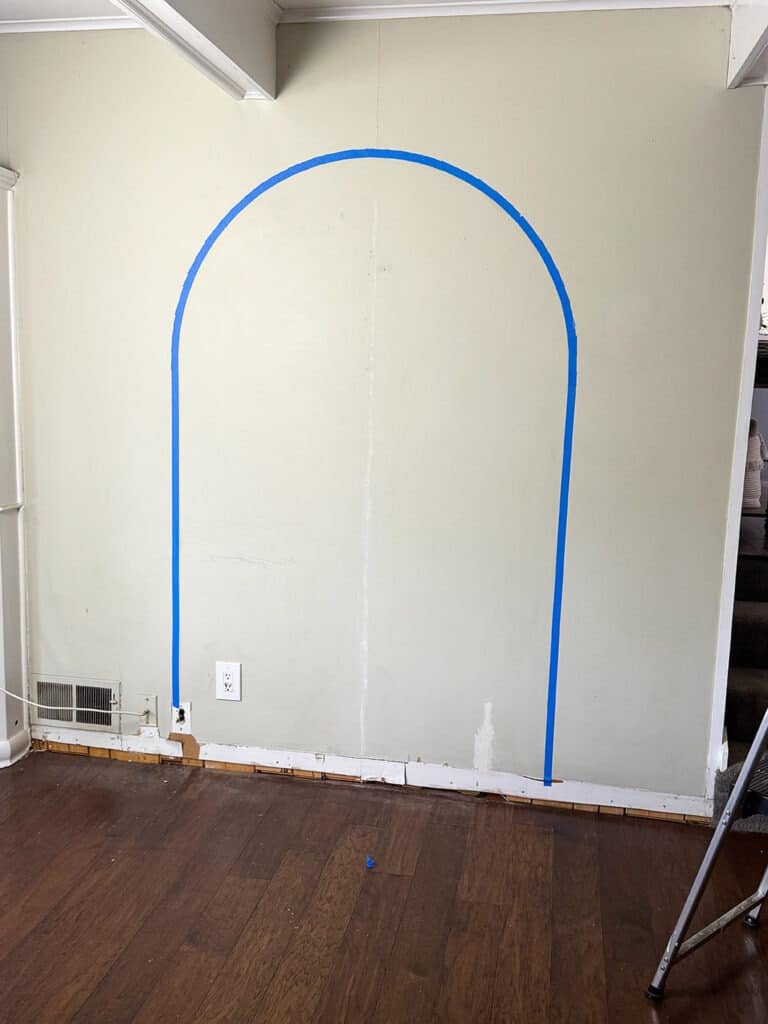

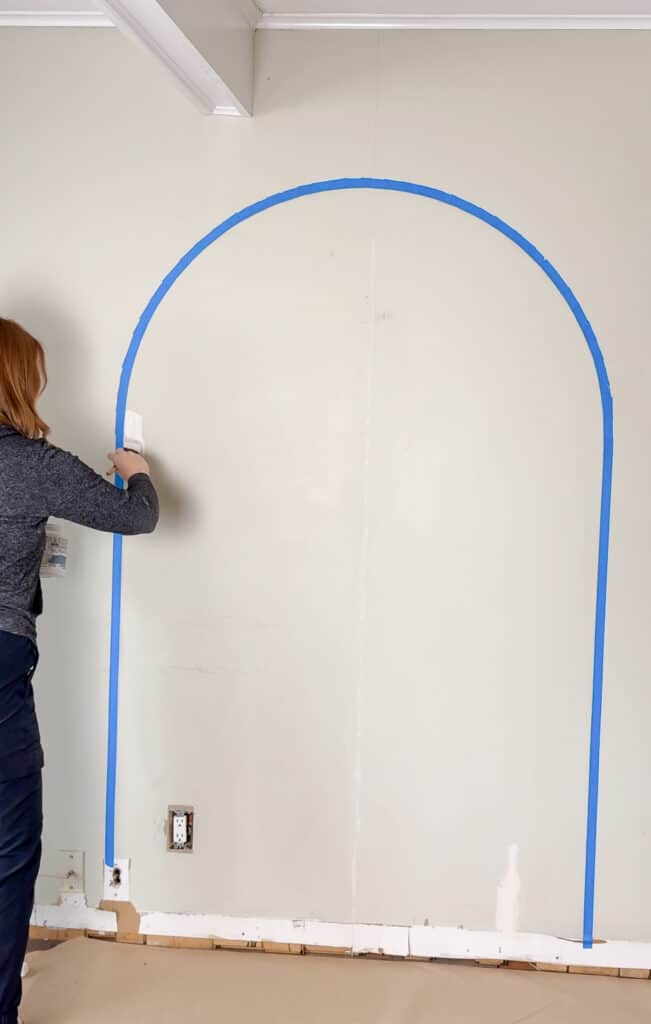

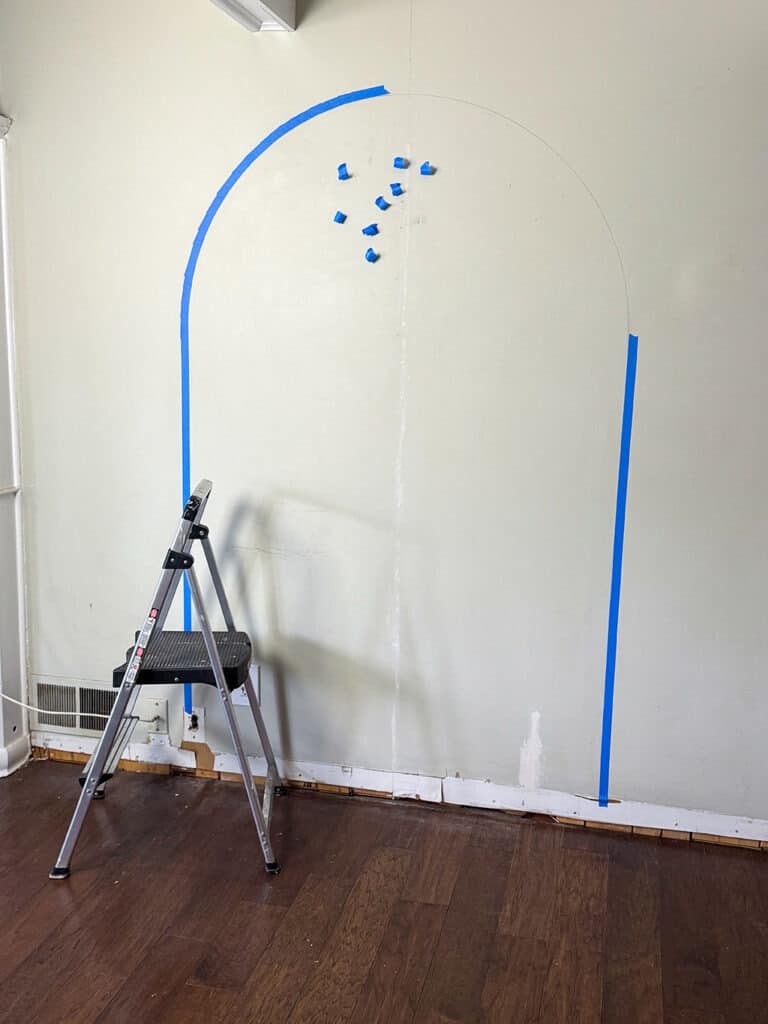

Next it was time to tape around the edges for a crisp paint line!

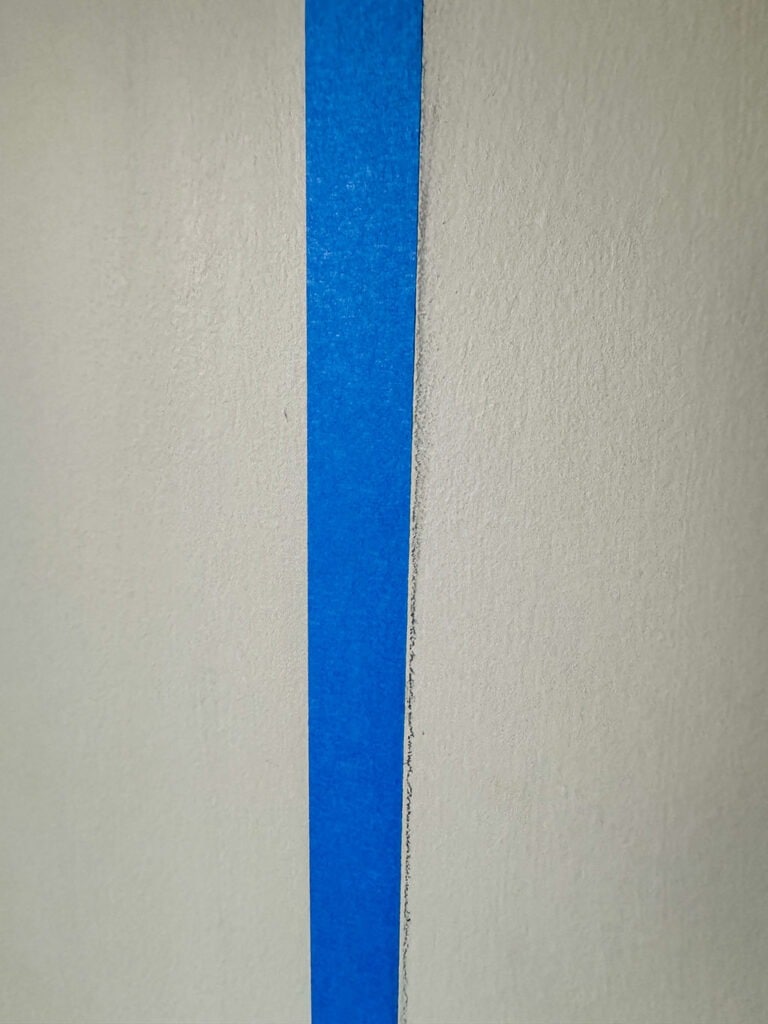

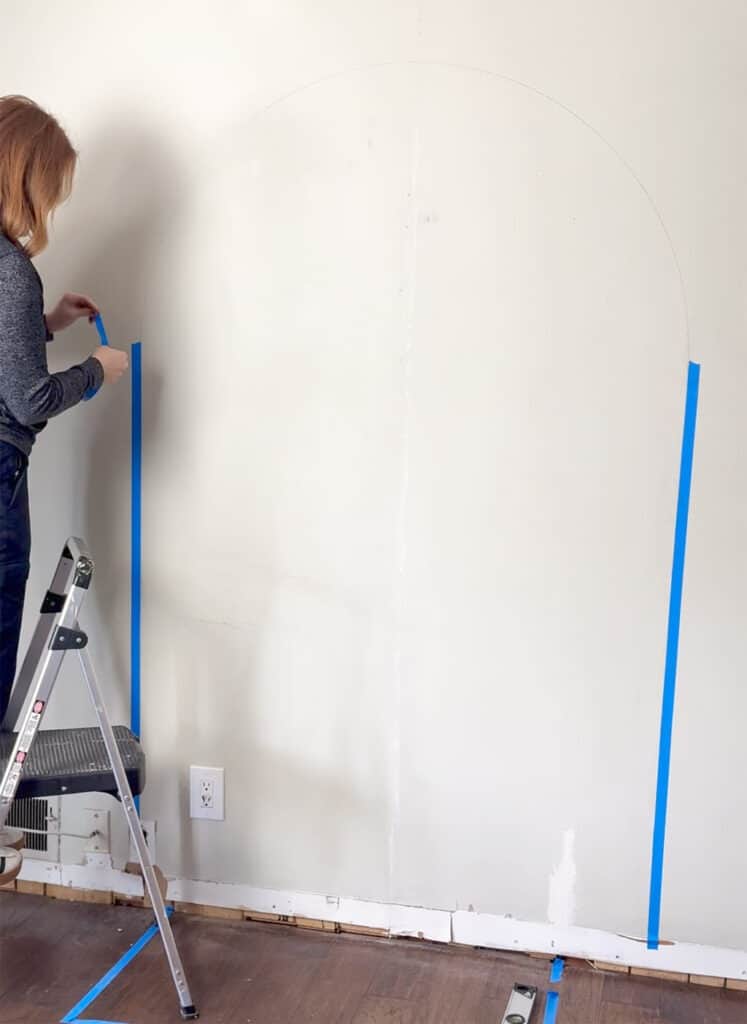

Taping the two vertical sides was quick and easy, but taping the arch took a little more patience.

Once I got to the curve section, I took small strips of tape and carefully overlapping them followed the line I drew. I pushed the tape down firmly as each piece overlapped to ensure a solid hold.

It was finally time to paint my DIY wall arch!

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

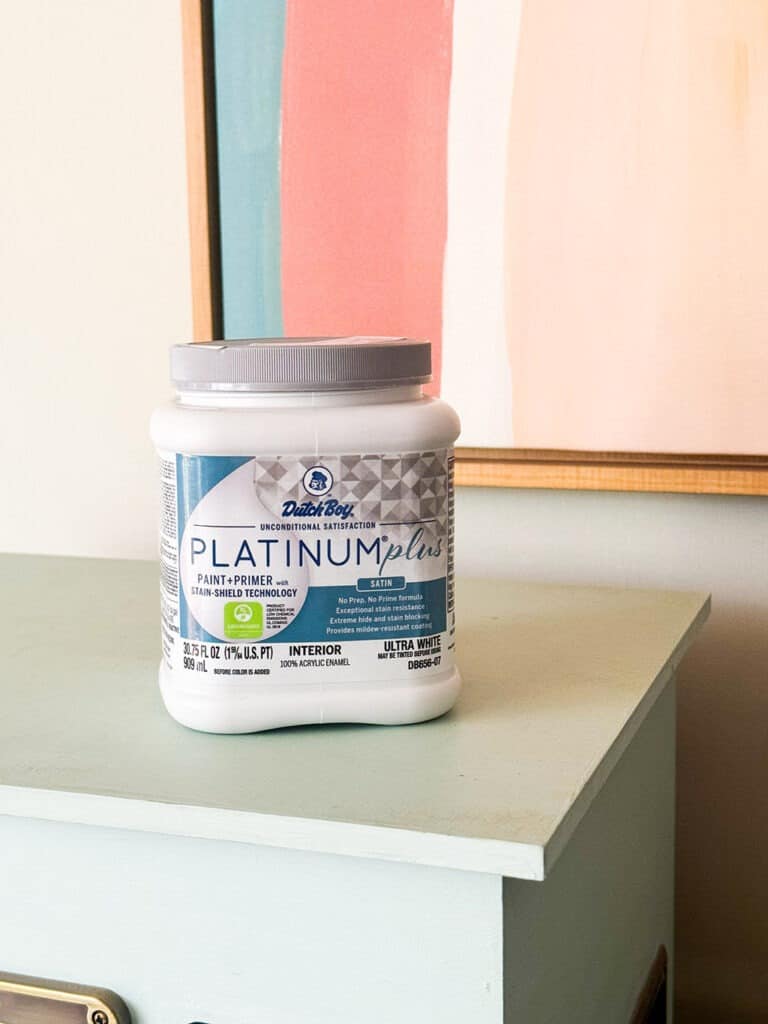

Dutch Boy Paints Platinum Plus Interior is a 100% acrylic paint + primer with Stain-Shield Technology. The ultra-premium coating offers excellent hide and coverage. With an extremely durable finish, Platinum Plus delivers exceptional stain resistance and is highly scrubbable and washable.

The paint’s no-prep, no-prime feature enables application directly over sound, non-peeling, previously painted glossy surfaces or uncoated drywall, plaster, masonry, and non-bleeding wood.

Platinum Plus Interior is GREENGUARD® certified for indoor air quality. Available in the quart or one-gallon Twist & Pour container or the easy-to-carry 3.5-gallon pail in Flat, Eggshell, Satin, and Semi-Gloss sheens.

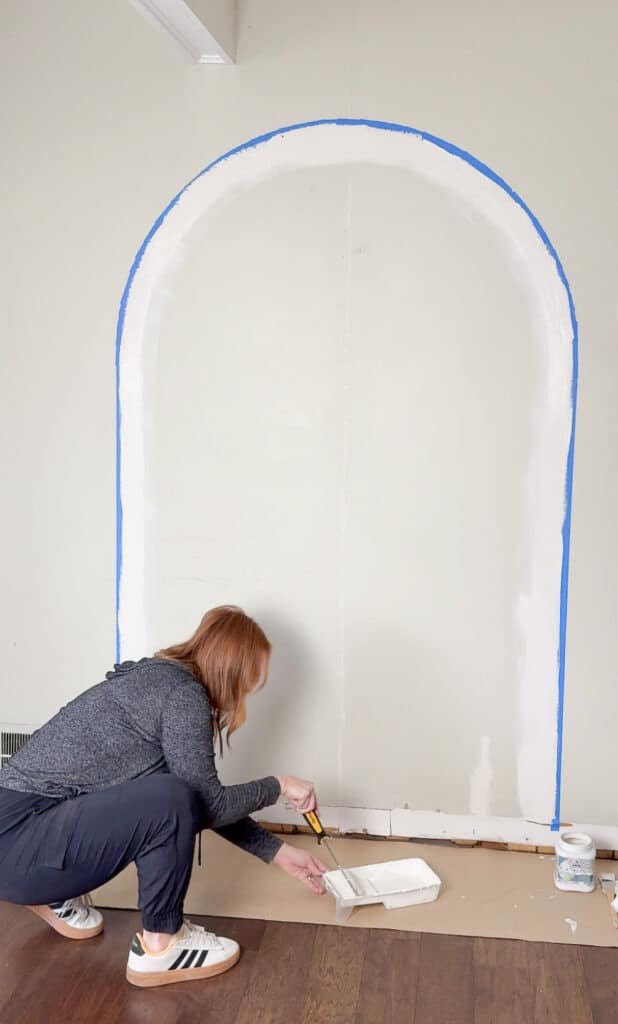

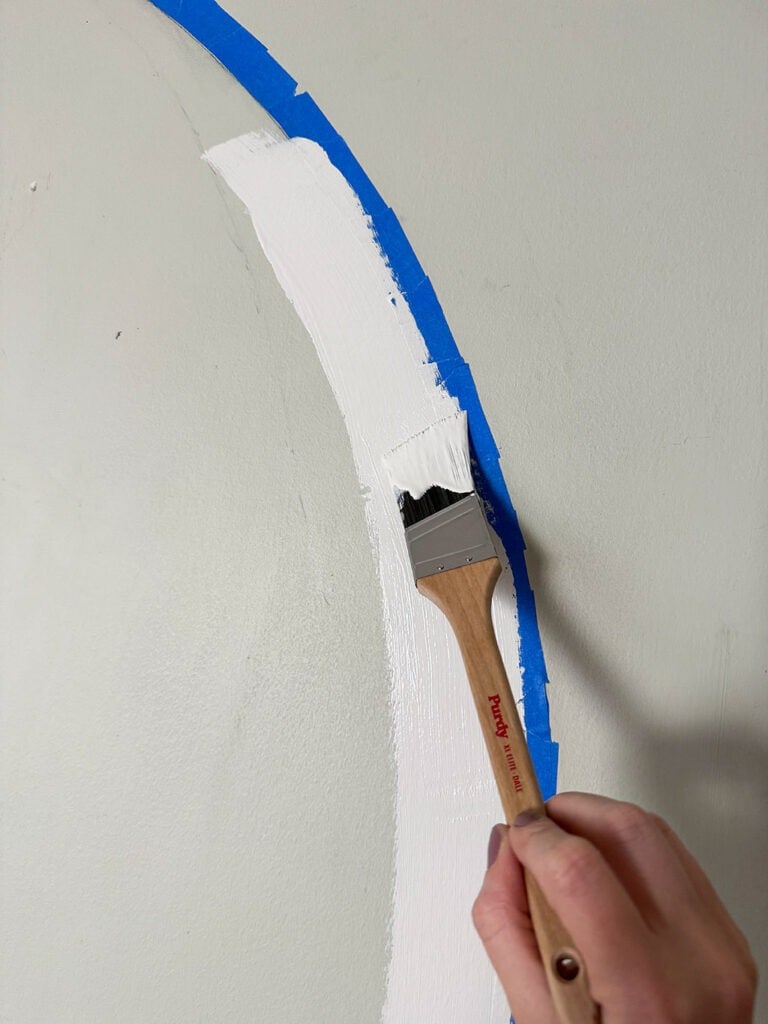

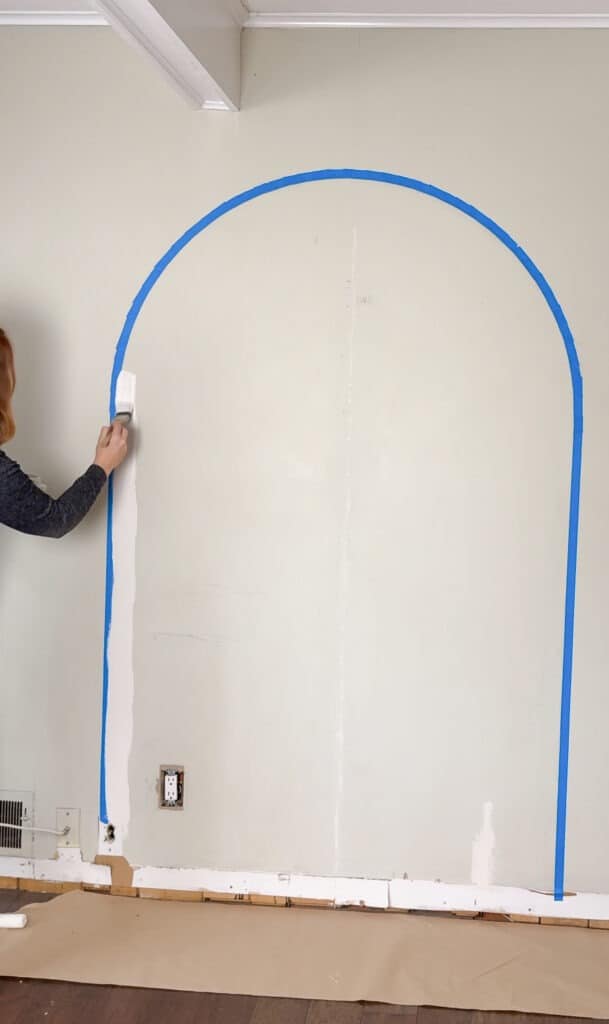

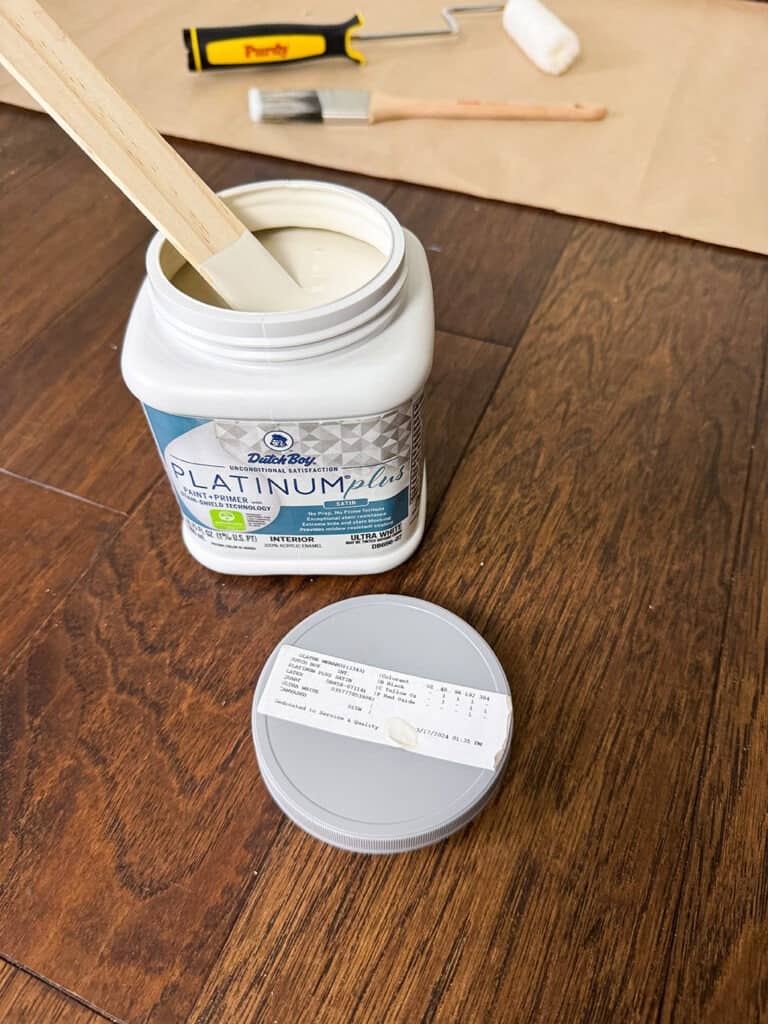

I gathered my paint and supplies and got to work trimming the edges around the tape.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

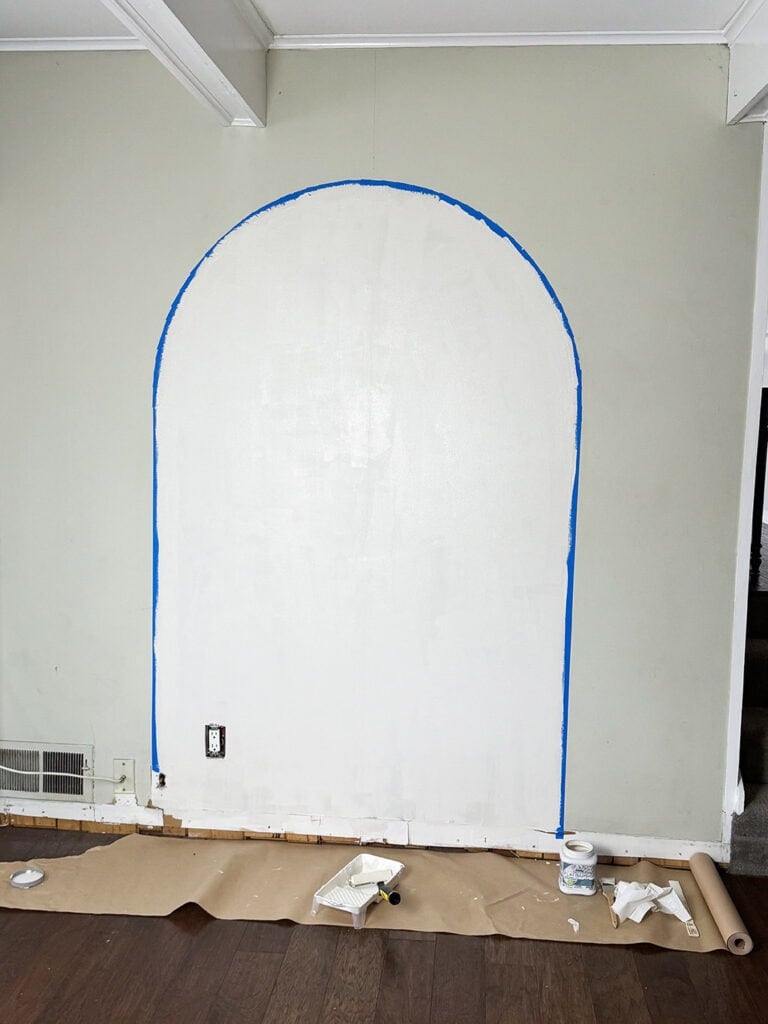

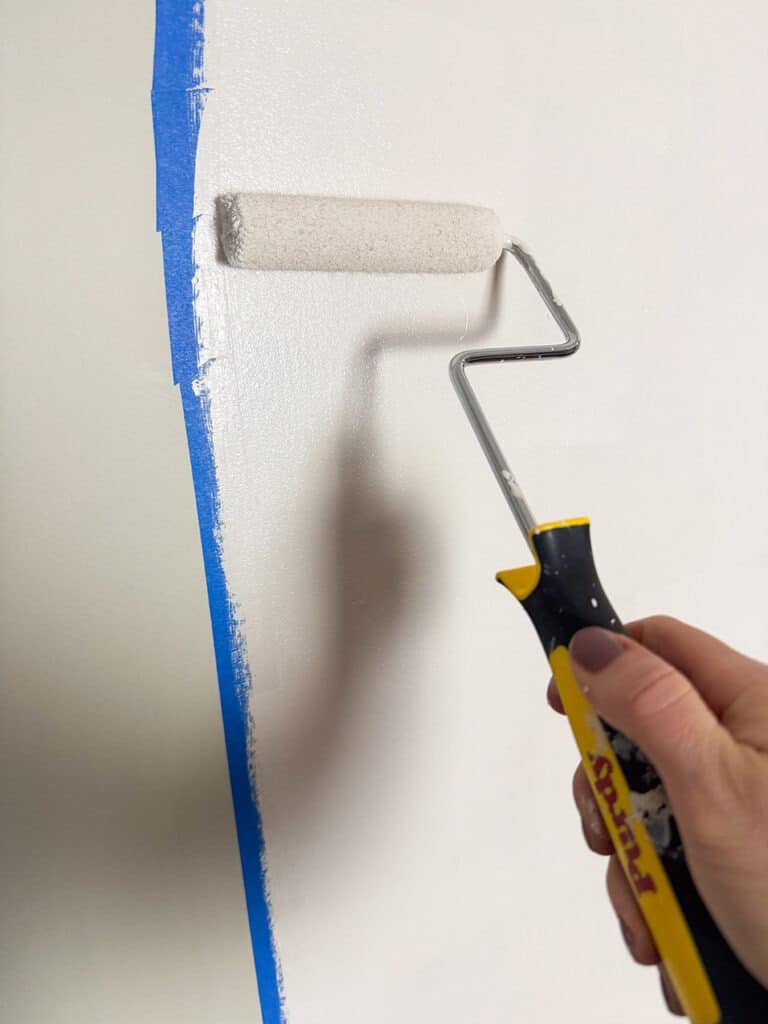

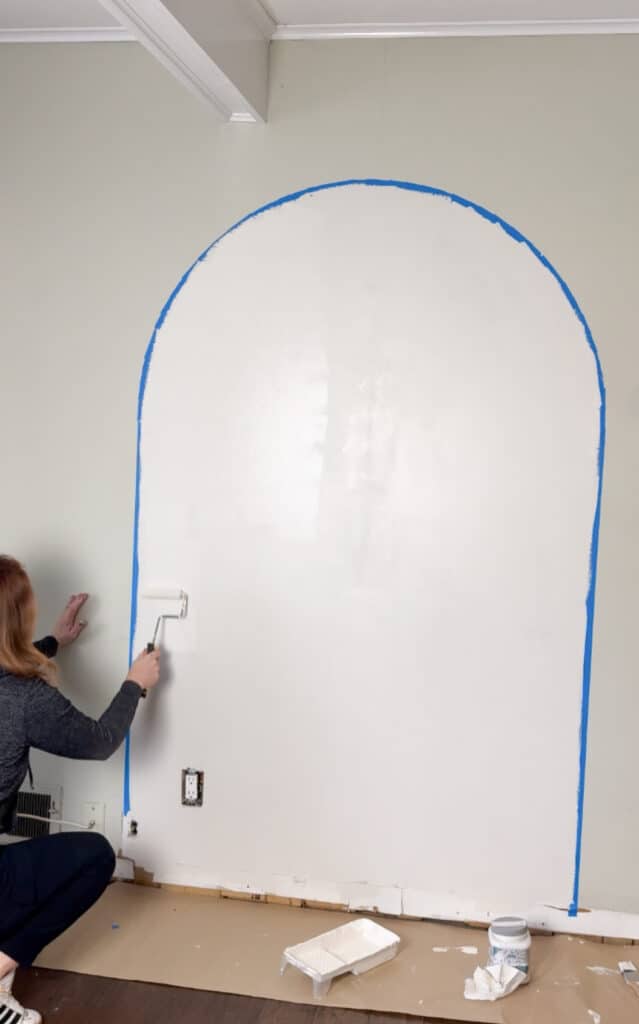

Once the edges were painted, I covered the middle area of the arch using my paint roller for a smooth finish.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

I applied two coats just to ensure everything was even, but I probably could have gotten away with one coat. That’s one reason why I love this paint so much!

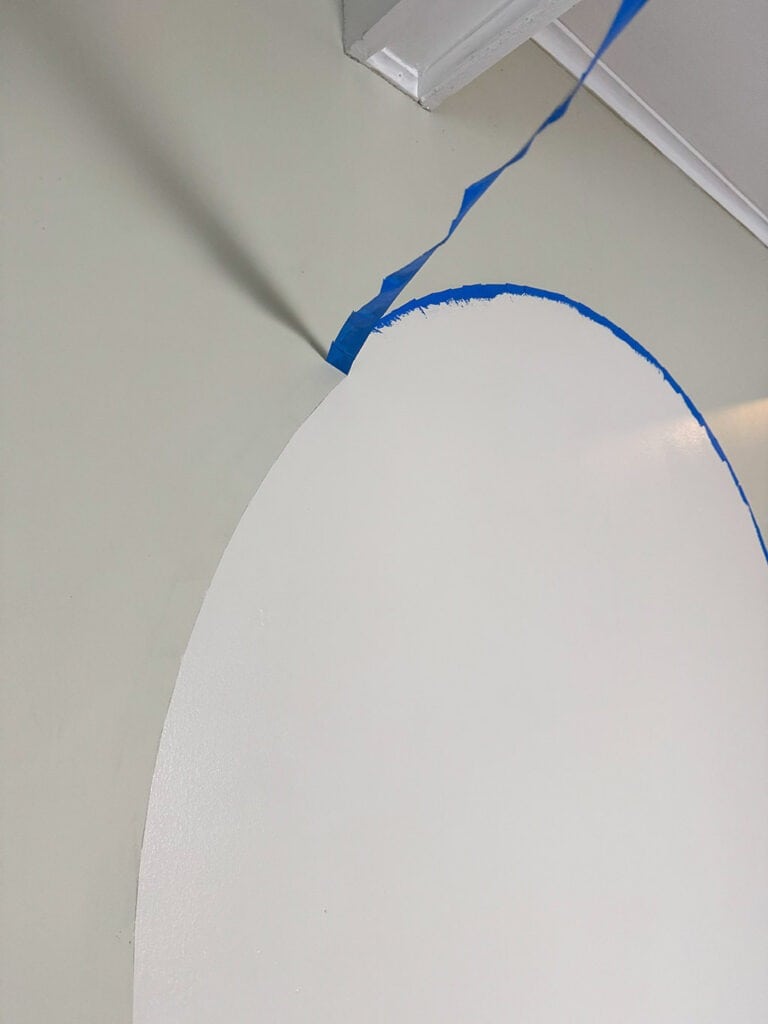

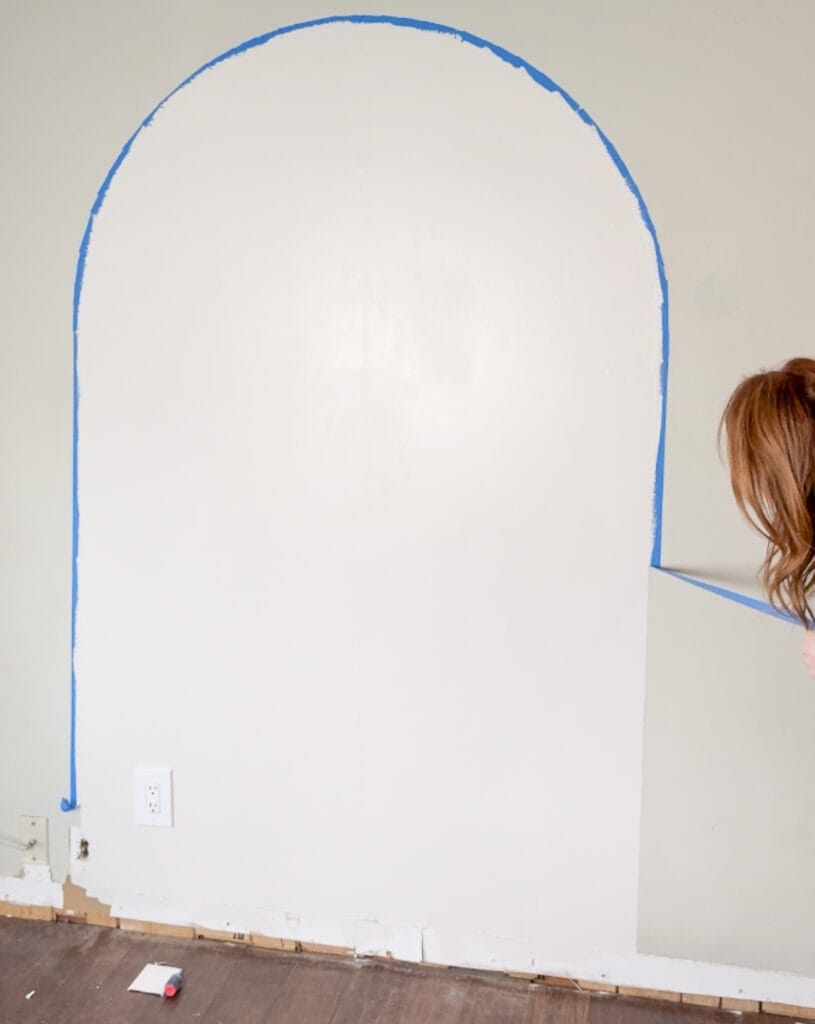

Next, I carefully peeled the tape away revealing super crisp lines!

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

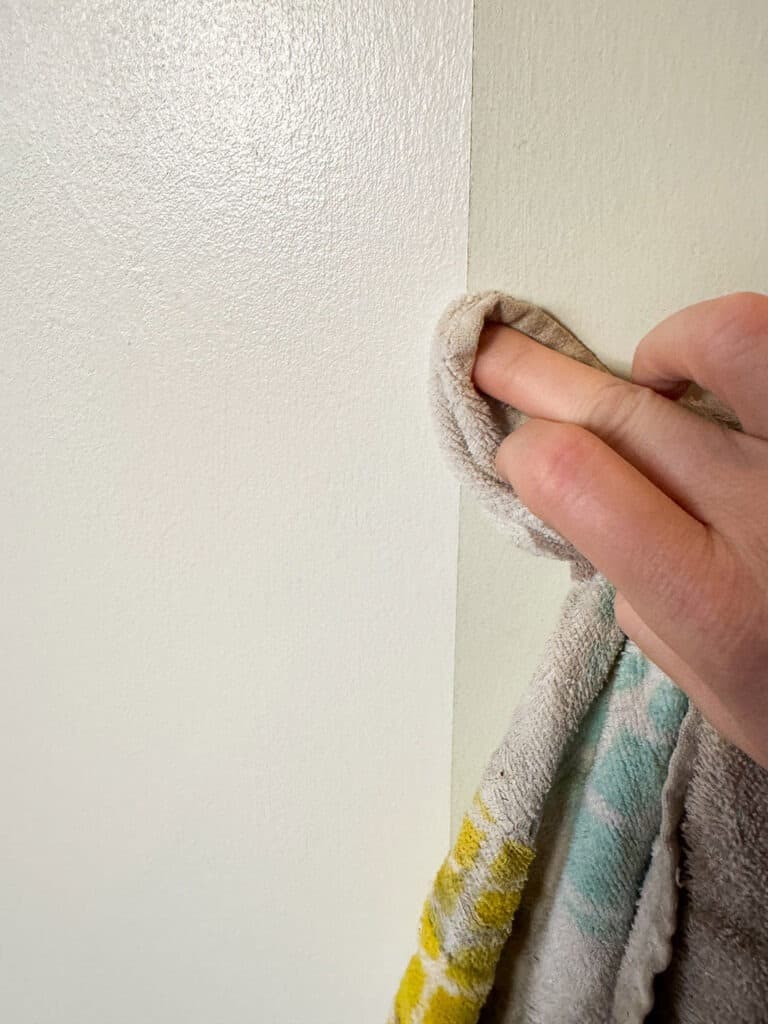

There were a couple spots that had some pencil lines showing, so I took my everyday cleaner and a rag and quickly wiped up the markings.

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

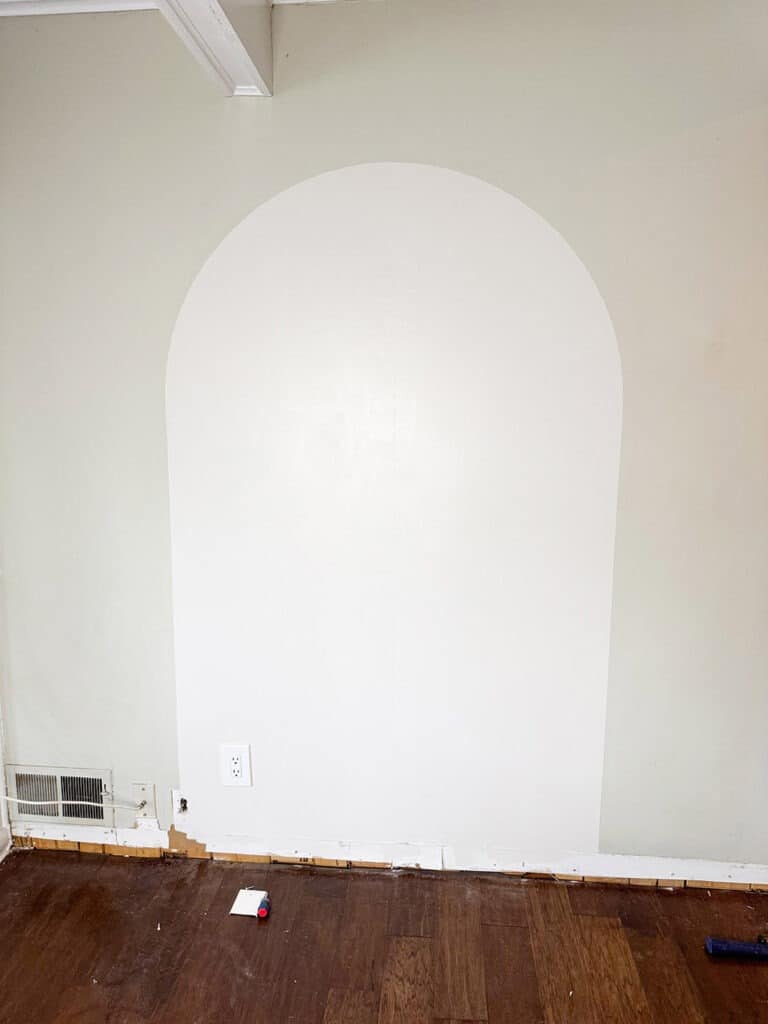

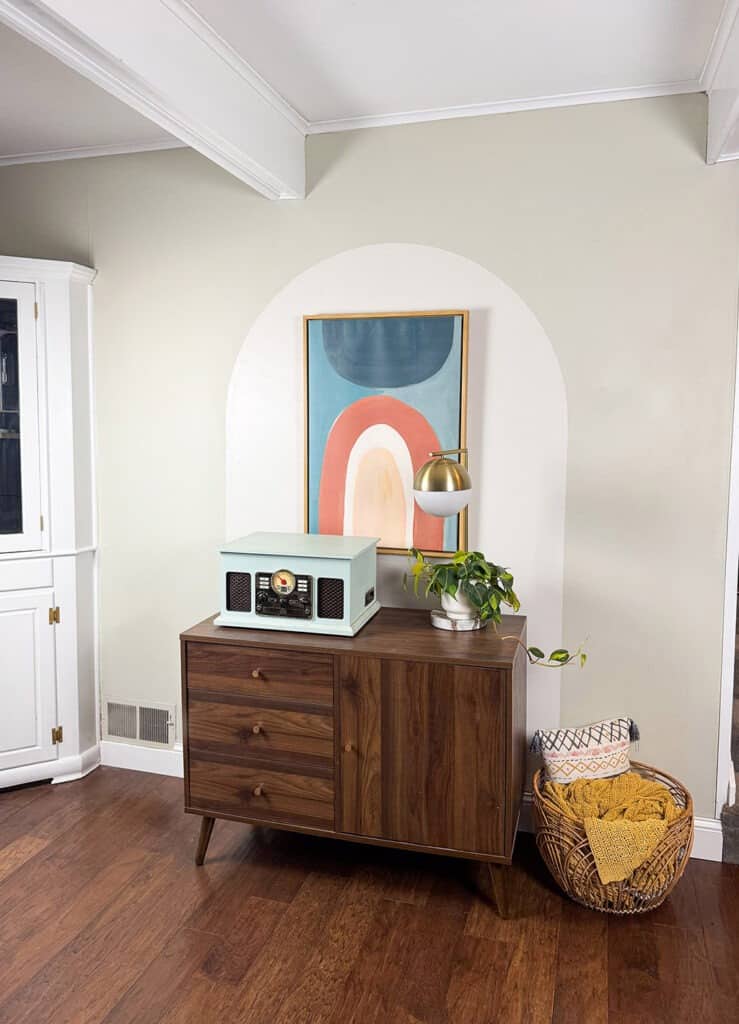

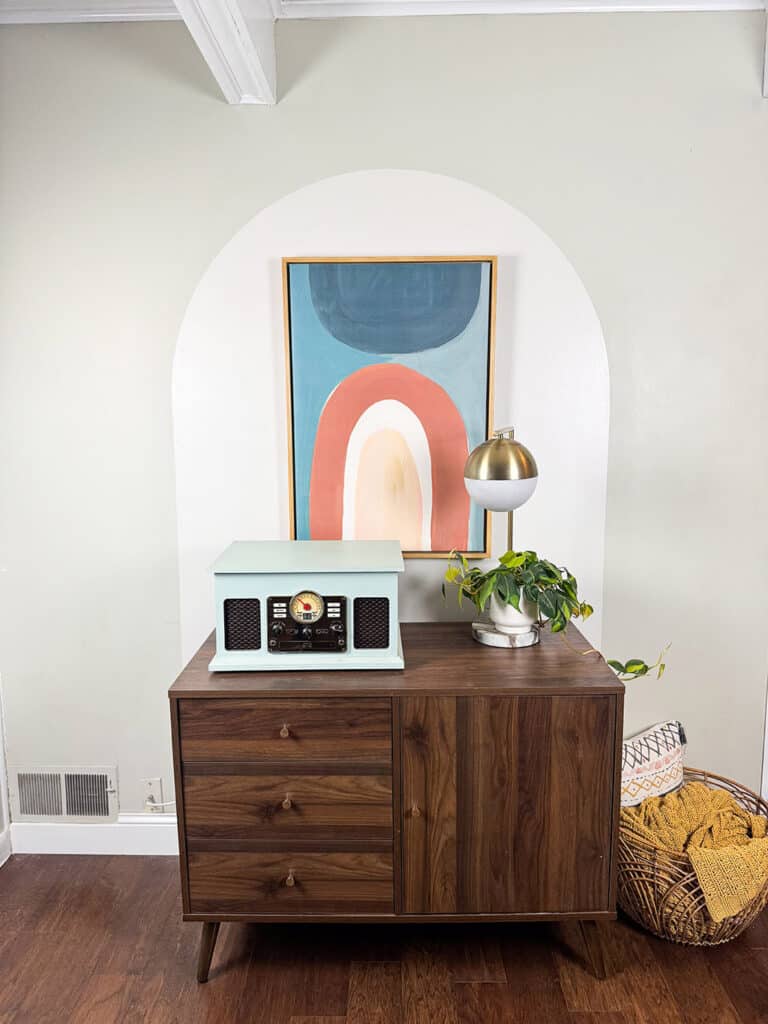

I absolutely LOVE how my wall arch turned out!

It gives so much bang for very little buck, and I love a project I can complete in one day!

How to Create a DIY Painted Wall Arch, Oh So Lovely Blog
How to Create a DIY Painted Wall Arch, Oh So Lovely Blog
How to Create a DIY Painted Wall Arch, Oh So Lovely Blog

What do you think of my DIY painted wall arch – I am SO happy with it!

I’m also very impressed with Dutch Boy® Paints – I highly recommend!
